SOUND-NONWOVEN
Made to Order
Single-sided Non-woven
Existing media attachment from the old Soundproofing Mats product.

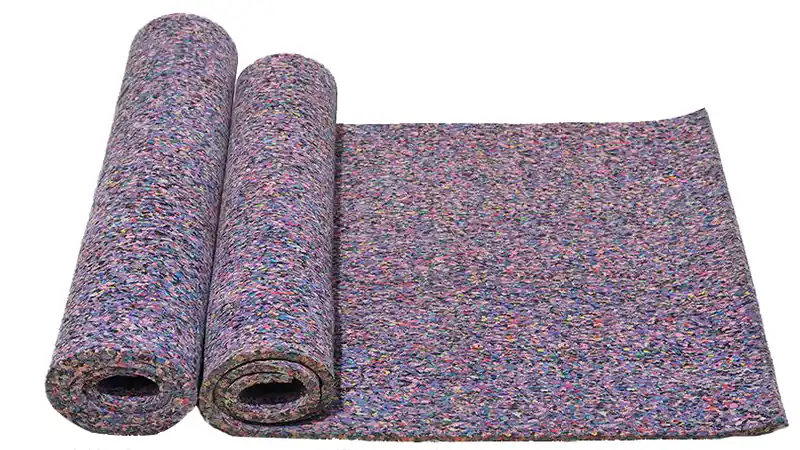

Soundproofing Mats
Indoor
Soundproofing Mats
Ref: SOUNDPROOFING-MATS
Soundproofing and vibration-control underlay family covering polyurethane rubber, rubber particle, cork rubber and non-woven materials.
Core Specifications
Polyurethane Rubber / Rubber Particle / Cork Rubber / Non-woven; material-specific thickness, density and sound-improvement ranges.
In Stock
Acoustic & Vibration Control
Gym & Fitness
Gallery
Product Images
01
Product Introduction
The supplied material documents four soundproofing underlay families: Polyurethane Rubber, Rubber Particle, Cork Rubber and Single-sided Non-woven. Their thickness, density and acoustic ranges differ by material.
- Polyurethane Rubber: 3–10 mm, 500–700 kg/m³, 17–30 dB.
- Rubber Particle: 5–15 mm, 750 kg/m³, 19–36 dB.
- Cork Rubber: 3–15 mm, 650 kg/m³, 17–30 dB.
- Single-sided Non-woven: 3 / 5 / 10 mm, 500–650 kg/m³; listed roll sizes vary by thickness.
02
Options & Configurations
SOUND-NONWOVEN
Made to Order
SOUND-RUBBER-PARTICLE
Made to Order

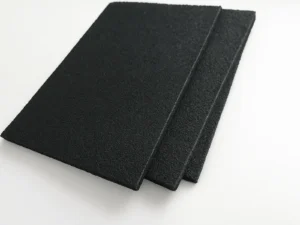

Rubber Particle
Existing media attachment from the old Rubber Particle Shock Absorber product.
| Thickness | Product Code | Available Patterns | Notes |
|---|---|---|---|
| 3 mm | 3MM | Availability depends on material; do not assume every thickness applies to every material. | |
| 4 mm | 4MM | Availability depends on material; do not assume every thickness applies to every material. | |
| 5 mm | 5MM | Availability depends on material; do not assume every thickness applies to every material. | |
| 6 mm | 6MM | Availability depends on material; do not assume every thickness applies to every material. | |
| 7 mm | 7MM | Availability depends on material; do not assume every thickness applies to every material. | |
| 8 mm | 8MM | Availability depends on material; do not assume every thickness applies to every material. | |
| 9 mm | 9MM | Availability depends on material; do not assume every thickness applies to every material. | |
| 10 mm | 10MM | Availability depends on material; do not assume every thickness applies to every material. | |
| 15 mm | 15MM | Availability depends on material; do not assume every thickness applies to every material. |
| Width | Length | Unit | Notes |
|---|---|---|---|
| 1 | 10 | m | General documented roll length option. |
| 1 | 15 | m | General documented roll length option. |
| 1 | 20 | m | General documented roll length option. |
| 1 | 12.5 | m | Listed for 5 mm single-sided non-woven mat. |
03
Technical Specifications
measured · verified| Parameter | Value |
|---|---|
| Material | Polyurethane Rubber / Rubber Particle / Cork Rubber / Single-sided Non-woven |
| Thickness | Material-specific ranges: 3–10 mm PU rubber; 5–15 mm rubber particle; 3–15 mm cork rubber; 3/5/10 mm non-woven. The source also lists 2 mm in a general specification section; applicability should be confirmed. |
| Size | Typically 1 m width; 10 / 15 / 20 m lengths depending on material. Non-woven also lists 5 mm × 1 m × 12.5 m. |
| Density | 500–750 kg/m³ depending on material (material-specific values apply). |
| Sound Insulation | 17–30 dB (Polyurethane Rubber / Cork Rubber); 19–36 dB (Rubber Particle). Do not generalize these values outside the documented material/test system. |
| Shock Absorption | Source describes sound/vibration reduction and shock absorption; no separate numeric shock-absorption value was mapped. |
Specifications subject to change. Contact us to confirm exact values for your project.
04
Product Structure
layer by layerSummary
Under-floor acoustic/vibration-control materials; exact material structure varies by product family.
05
Performance & Applications
Acoustic & Vibration Control
Flooring application category for acoustic and vibration-control projects, focused on floor build-up, vibration or impact source, target performance, substrate, material and installation.
Gym & Fitness
Flooring application category for gyms and fitness facilities, covering equipment load, impact, cushioning, acoustic requirements, substrate and installation format.
06
Installation & Accessories
Installation Guide
Source build-up shows floor above 40 mm cement mortar and the sound/shock-absorbing pad over the ground. For wooden flooring, the source states cement mortar is not required.
Accessories
Underlay installation is system-dependent; no universal accessory package is assumed.
08
Supply & Customization
Supply Status
In StockConfirm with sales; MOQ varies by product, stock/custom specification and quantity.
Minimum Order Quantity
Confirm with sales; MOQ varies by product, stock/custom specification and quantity.
Lead Time
Confirm with sales; lead time varies by stock status, specification, quantity and production schedule.
Custom Orders Welcome
We accept customization for thickness, color, density, size, and structure. Special patterns, non-standard specifications, and unique technical requirements are handled case by case. Contact us to confirm feasibility, MOQ, cost, and lead time.
